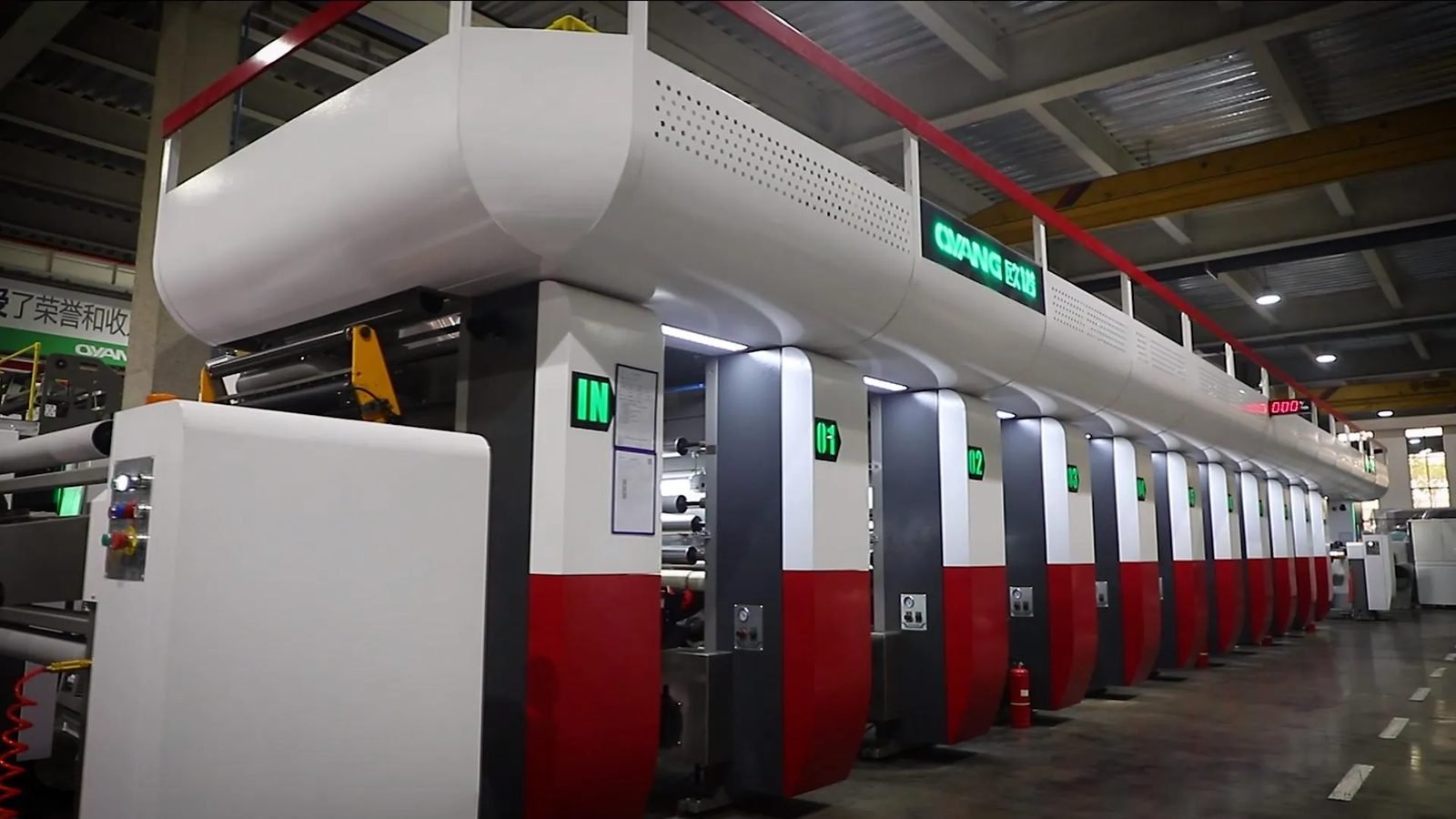

HONOR 4.0 PLUS Rotogravure Printing Machine
Buyers in the US, Canada, Mexico, Colombia, Brazil and Argentina use this rotogravure printing machine configuration when they need stable output and clear project support from quotation through installation.
- Rated capacity / speed: Up to 400 m/min
- The HONOR 4.0 PLUS line is engineered for multi-shift factory use.
- Request a configuration sheet and quotation via WhatsApp or the contact form.
- We respond with recommended options, not a generic brochure dump.
- Built by OUNUO / OYANG Group with export packing and after-sales support.

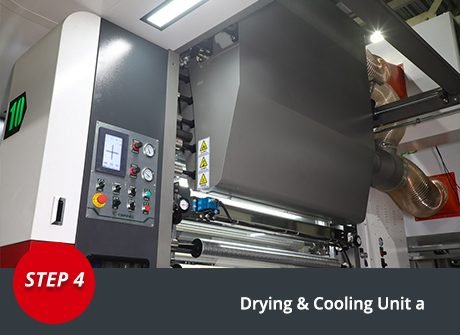

Detail photos
Key assemblies and close-ups for configuration review.
Product introduction
HONOR 4.0 PLUS Rotogravure Printing Machine is manufactured by OUNUO Machinery (OYANG Group) for packaging and printing factories worldwide. Model: HONOR 4.0 PLUS. Category: Rotogravure Printing Machine.
Buyers in the US, Canada, Mexico, Colombia, Brazil and Argentina use this rotogravure printing machine configuration when they need stable output and clear project support from quotation through installation.
The HONOR 4.0 PLUS line is engineered for multi-shift factory use.
Request a configuration sheet and quotation via WhatsApp or the contact form.
Technical parameters: Printing Width: 850 / 1050 / 1250 mm; Printing Colors: 5-12 Colours; Maximum Mechanical Speed: Up to 400 m/min; Registration Accuracy: ±0.05 mm; Suitable Materials: PET, BOPP, CPP, PE, Paper, Al-foil; Power Supply: 380 V / 50Hz; Maximum diameter of unwinding: Phi 800 mm; Maximum diameter of winding: Phi 800 mm; Receiving and discharging paper core: Φ76mm x Φ92mm (3"); Tension range: 3-30KgF.
Share bag/product size, material and target capacity via WhatsApp or the contact form for a recommended configuration and quotation.
Key parameters
| Model | HONOR 4.0 PLUS |
|---|---|
| Speed / Capacity | Up to 400 m/min |
| Material | PET, BOPP, CPP, PE, Paper, Al-foil |
| Printing Width | 850 / 1050 / 1250 mm |
| Printing Colors | 5-12 Colours |
| Registration Accuracy | ±0.05 mm |
| Suitable Materials | PET, BOPP, CPP, PE, Paper, Al-foil |
| Power Supply | 380 V / 50Hz |
| Maximum diameter of unwinding | Phi 800 mm |
| Maximum diameter of winding | Phi 800 mm |
| Receiving and discharging paper core | Φ76mm x Φ92mm (3") |
| Tension range | 3-30KgF |
| Tension accuracy | ≤± 0.3KgF (full amplitude accuracy) |

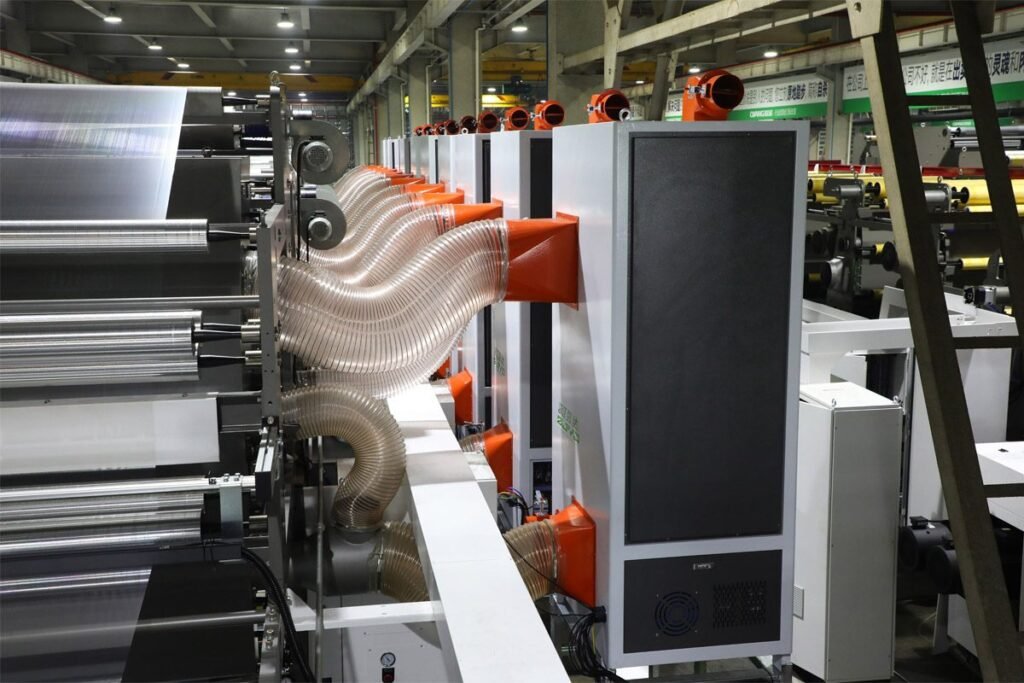

| Heating mode | Electric heating/steam/natural gas/hot oil, etc |
| Heating temperature | Max.80℃ (room temperature 20℃) |
| Temperature control accuracy | Plus or minus 2 ℃ |
| Total machine power | About 125-200kW (main)(Variable from 5 to 10 color groups） |
| Brand | OUNUO / OYANG |
| Category | Rotogravure Printing Machine |
Share bag size, material GSM and target capacity — we will recommend a setup and quotation path.
