HONOR 3.5 Rotogravure Printing Machine
Support a key to "on" function, the stability of the fully automatic tinted function, reduce the reliance of the equipment to the person's skills.
- Support a key to "on" function, the stability of the fully automatic tinted function, reduce the reliance of the equipment to the person's skills.
- Request a configuration sheet and quotation via WhatsApp or the contact form.
- We respond with recommended options, not a generic brochure dump.

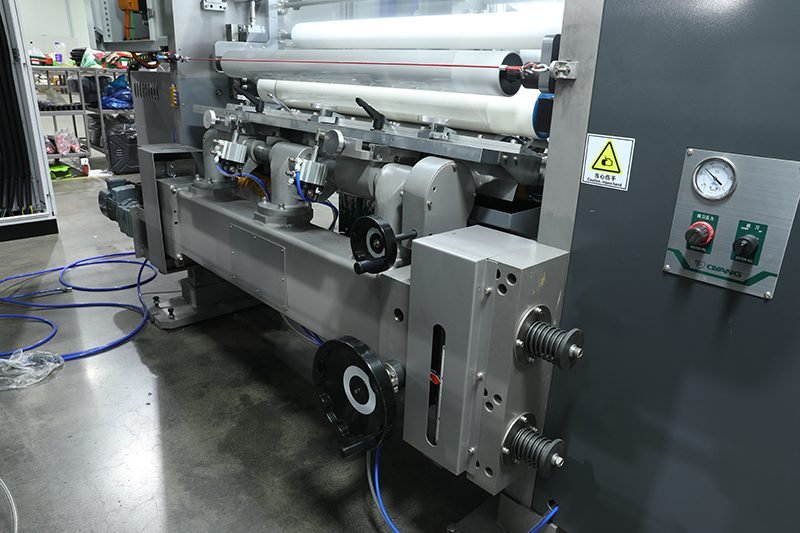

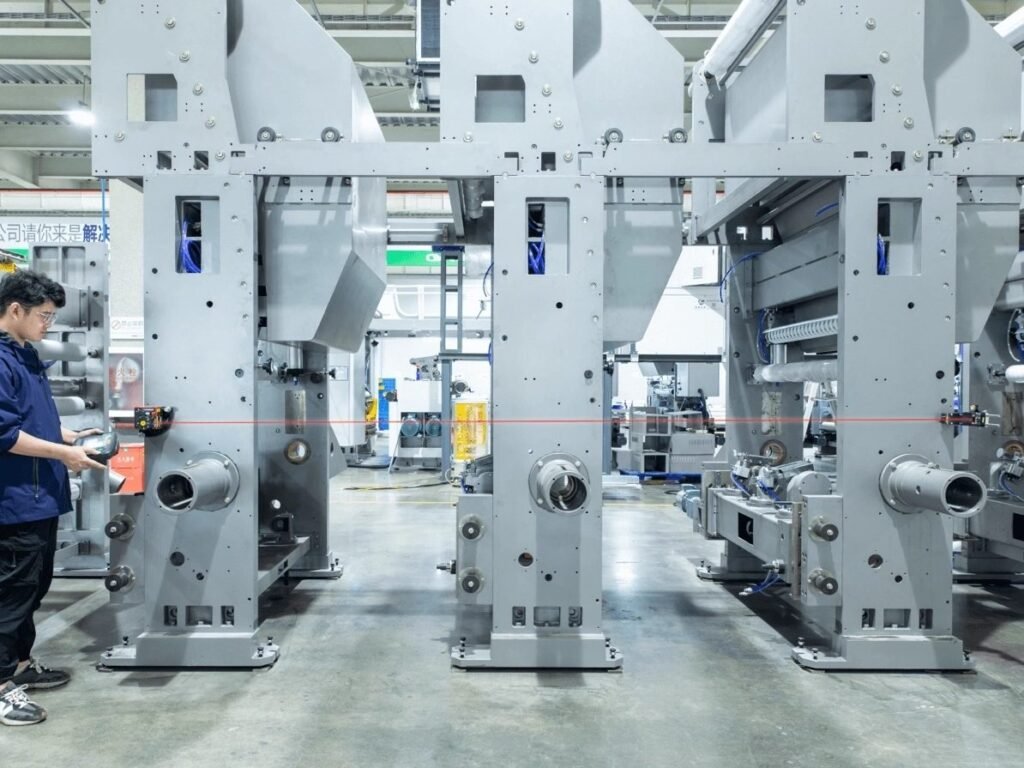

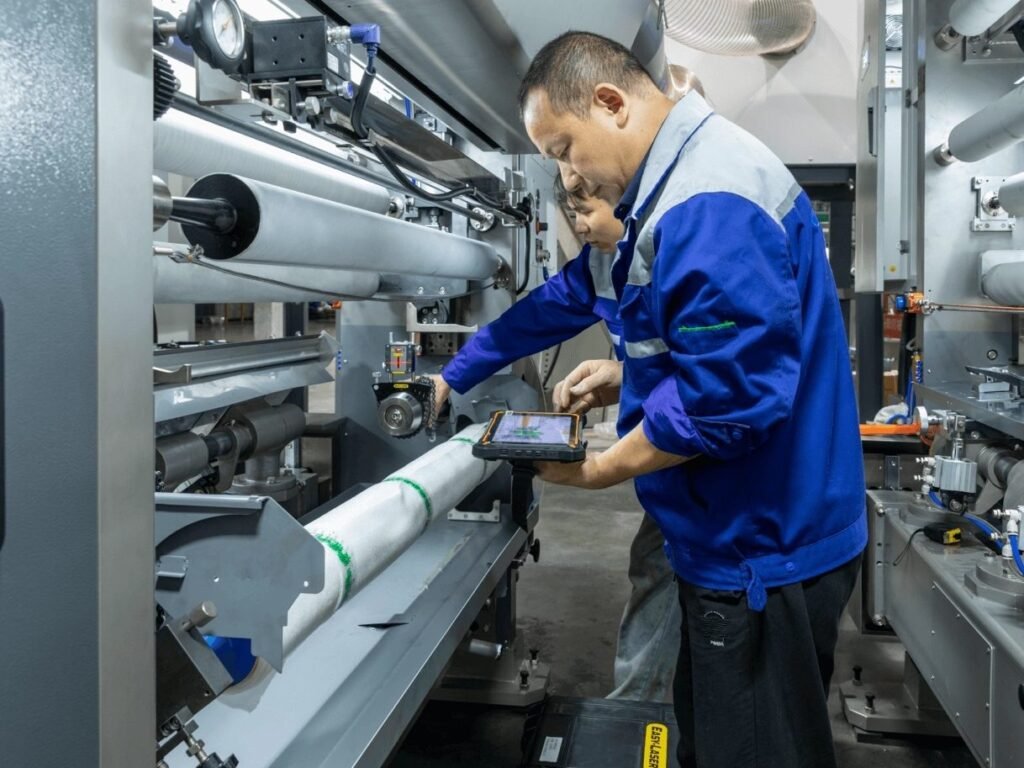

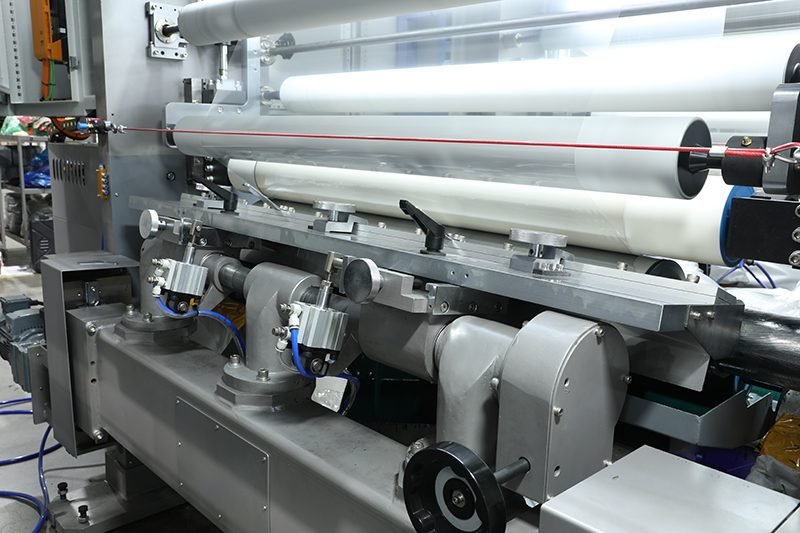

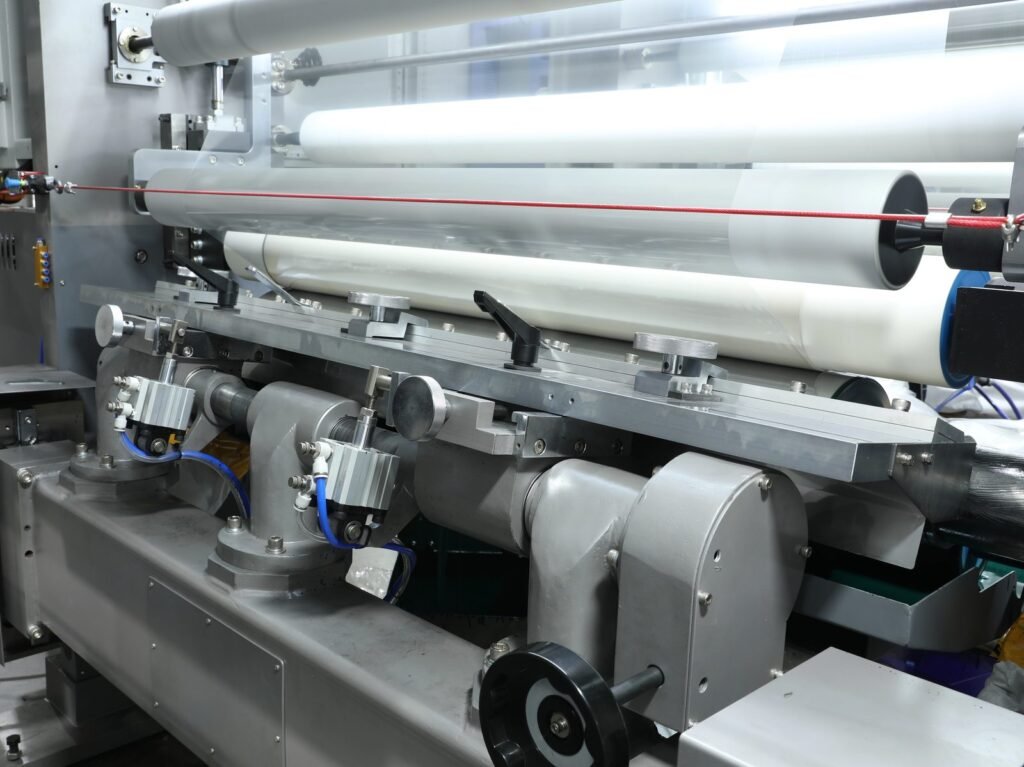

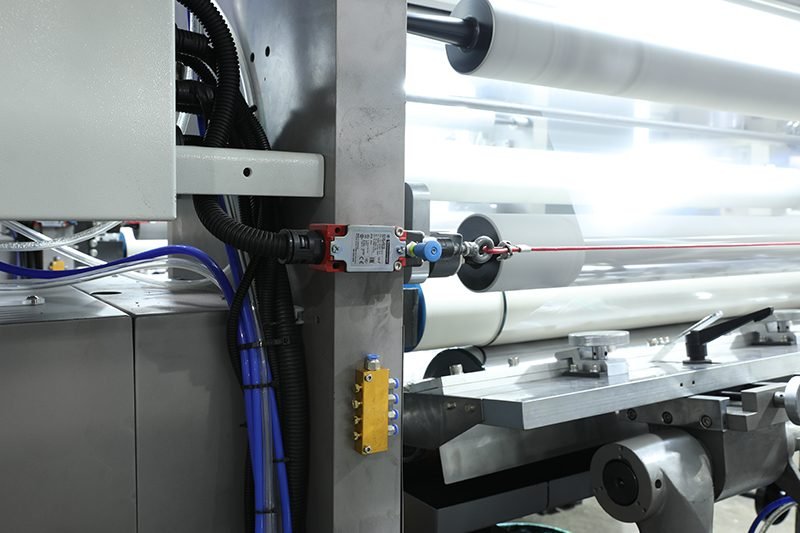

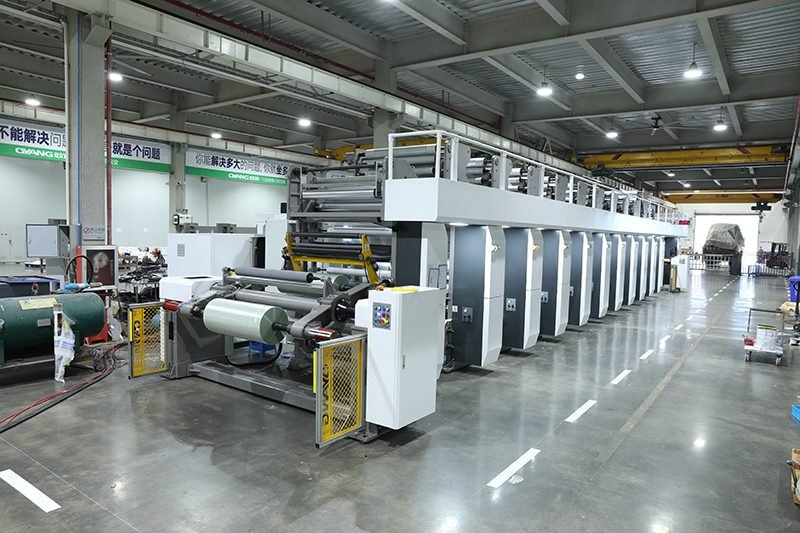

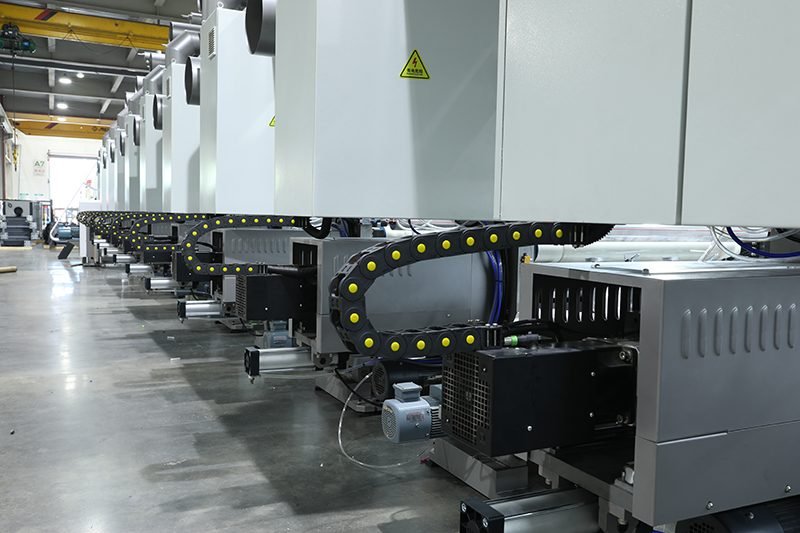

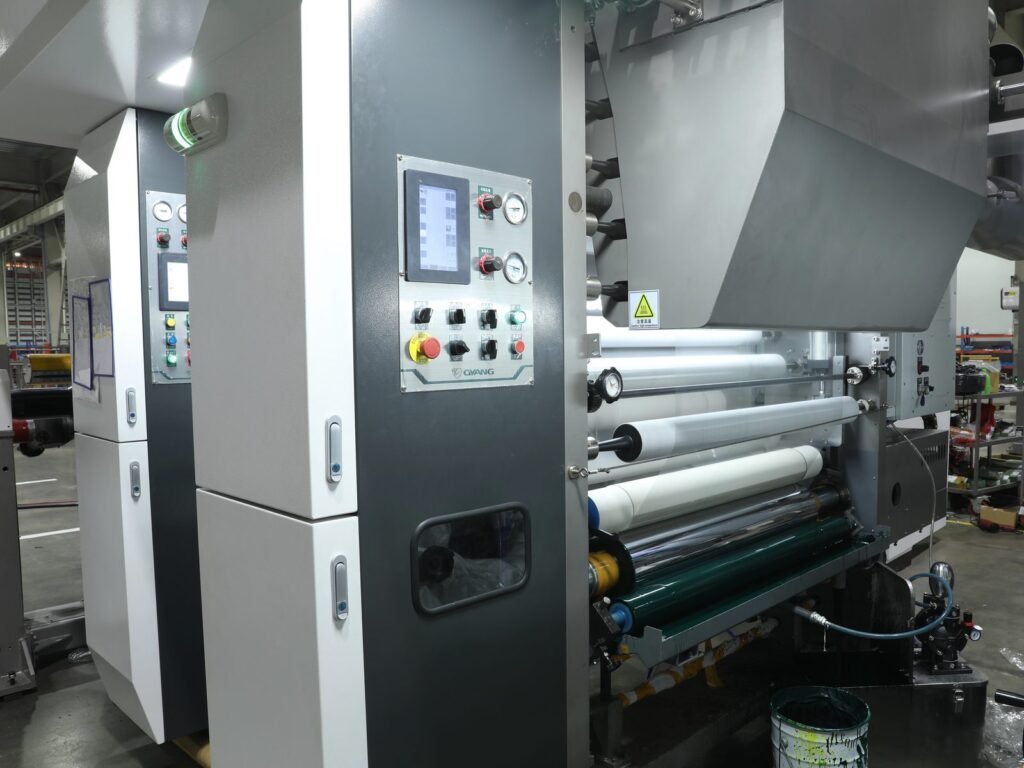

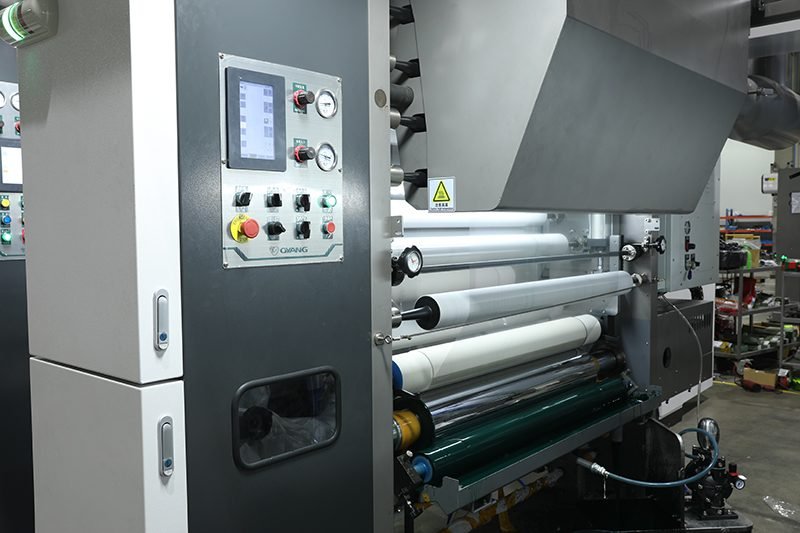

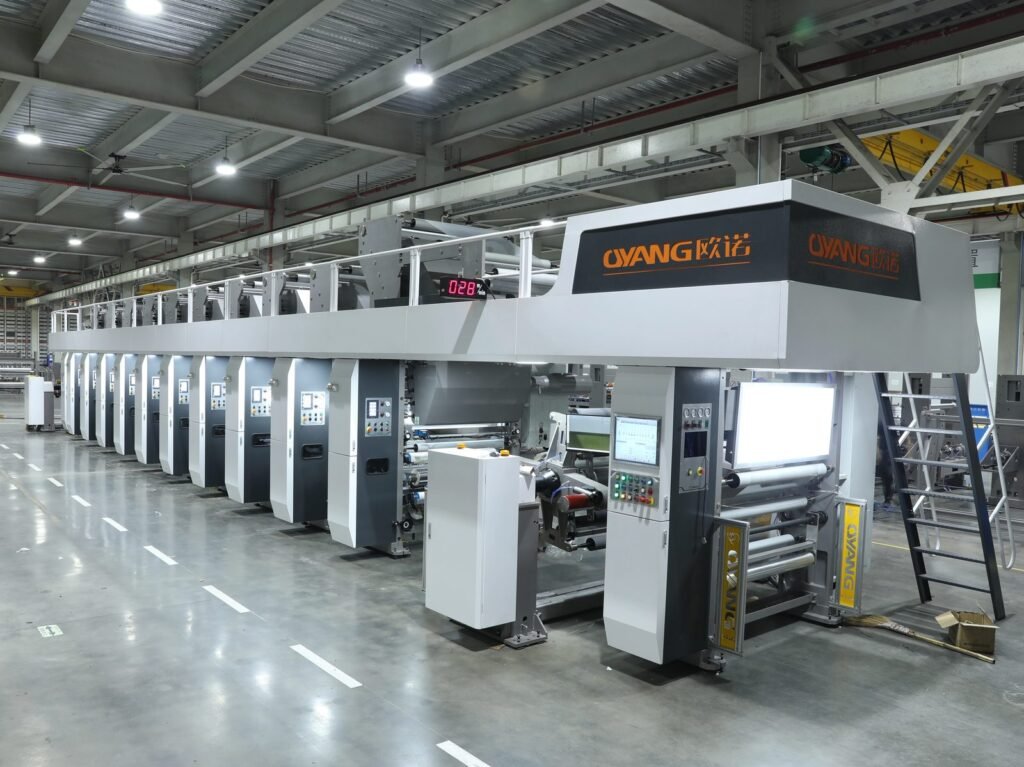

Detail photos
Key assemblies and close-ups for configuration review.
Product introduction
HONOR 3.5 Rotogravure Printing Machine is manufactured by OUNUO Machinery (OYANG Group) for packaging and printing factories worldwide. Model: HONOR 3.5. Category: Rotogravure Printing Machine.
Support a key to "on" function, the stability of the fully automatic tinted function, reduce the reliance of the equipment to the person's skills.
Request a configuration sheet and quotation via WhatsApp or the contact form.
We respond with recommended options, not a generic brochure dump.
Technical parameters: Printing color number: 10 colors(Increase or decrease); Maximum printing width: 1250 mm; Maximum machine speed: 300 m/min(Standard plate roll diameter Φ170); Roll diameter range: Φ120mm-Φ300mm; Roll length range: 900 mm -1350mm; Alignment accuracy: ≤±0.1mm(automatic); Maximum diameter of unwinding: Φ800mm; Maximum diameter of winding: Φ800mm.
Share bag/product size, material and target capacity via WhatsApp or the contact form for a recommended configuration and quotation.
Key parameters
| Model | HONOR 3.5 |
|---|---|
| Speed / Capacity | 300 m/min(Standard plate roll diameter Φ170) |
| Material | PP, BOPP, CPP, PE, PET, PVC, NY etc |
| Printing color number | 10 colors(Increase or decrease) |
| Maximum printing width | 1250 mm |
| Roll diameter range | Φ120mm-Φ300mm |
| Roll length range | 900 mm -1350mm |
| Alignment accuracy | ≤±0.1mm(automatic) |
| Maximum diameter of unwinding | Φ800mm |
| Maximum diameter of winding | Φ800mm |
| Receiving and discharging paper core | Φ76mm×Φ92mm(3") |
| Tension range | 3-30KgF |
| Tension accuracy | ≤±0.3 KgF(Full amplitude accuracy) |
| Heating mode | Electric heating/steam/natural gas/hot oil, etc |
| Heating temperature | Max.80ºC (indoor temperature 20º) |
| Temperature control accuracy | ±2ºC |
| Total machine power | Approx.175Kw |
| Brand | OUNUO / OYANG |
| Category | Rotogravure Printing Machine |
Share bag size, material GSM and target capacity — we will recommend a setup and quotation path.
