HONOR 3.5 Plus Rotogravure Printing Machine
Buyers in the US, Canada, Mexico, Colombia, Brazil and Argentina use this rotogravure printing machine configuration when they need stable output and clear project support from quotation through installation.
- Rated capacity / speed: 400 m/min(Standard plate roll diameter Φ170)
- The HONOR 3.5 Plus line is engineered for multi-shift factory use.
- Request a configuration sheet and quotation via WhatsApp or the contact form.
- We respond with recommended options, not a generic brochure dump.
- Built by OUNUO / OYANG Group with export packing and after-sales support.

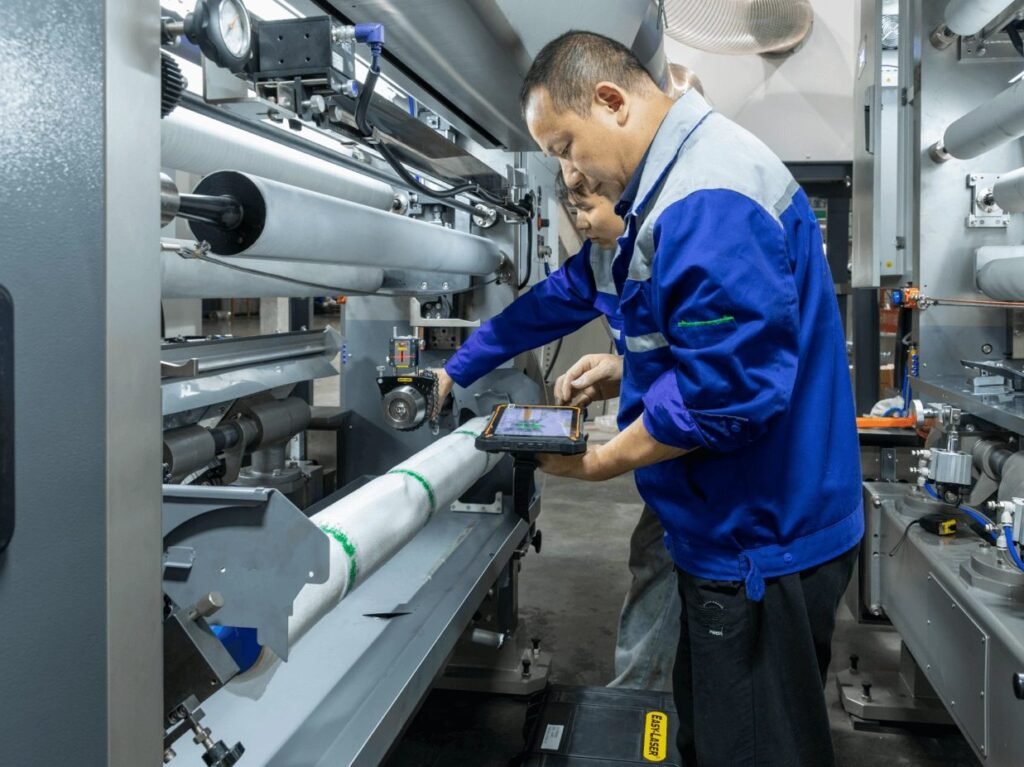

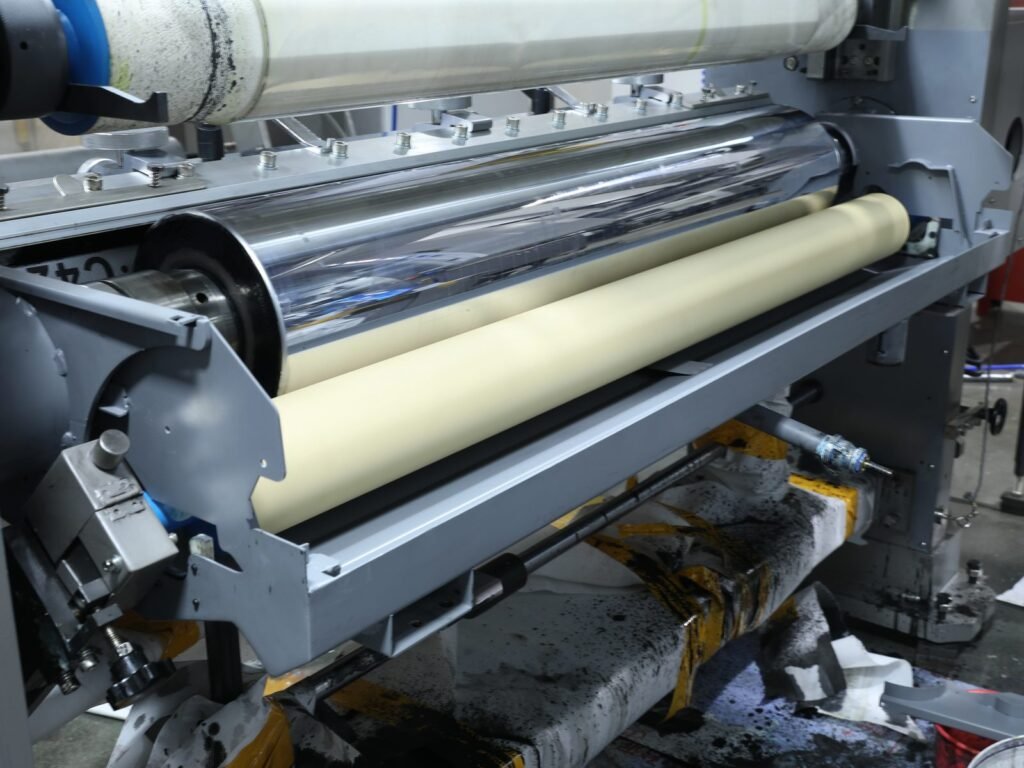

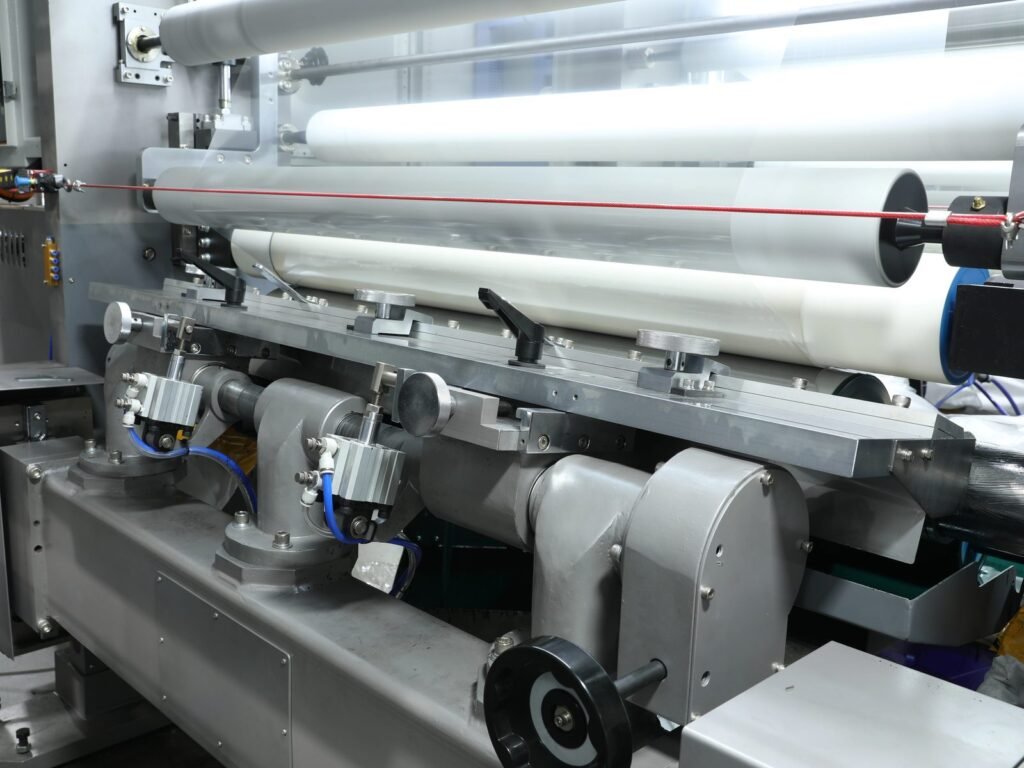

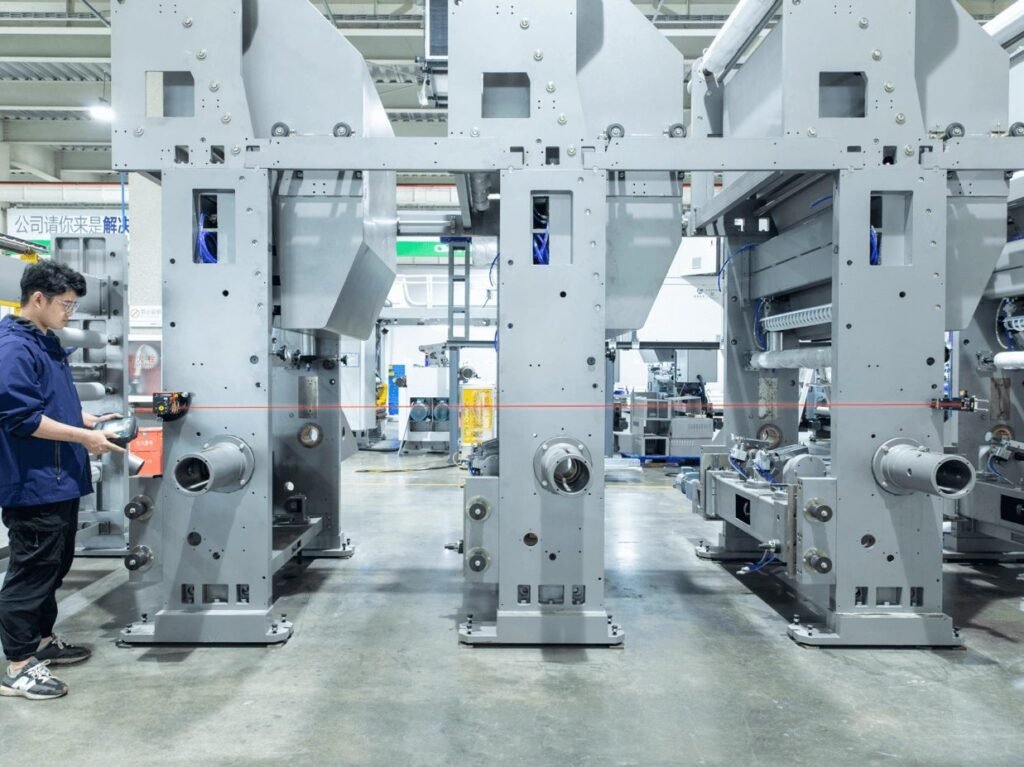

Detail photos
Key assemblies and close-ups for configuration review.
Product introduction
HONOR 3.5 Plus Rotogravure Printing Machine is manufactured by OUNUO Machinery (OYANG Group) for packaging and printing factories worldwide. Model: HONOR 3.5 Plus. Category: Rotogravure Printing Machine.
Product Parameters Detailed Photos Video 1, Efficient and stable winding mechanism- Adopt tower type double station receiving and discharging structure, realize the whole process without stopping, without slowing down stable coil replacement2. Intelligent and accurate printing unit- Support a key to "on" function, the stability of the fully automatic tinted function, reduce the reliance of the equipment tothe person's skills;3, Advanced, and the drying system of environmental protection- Oven adopts half suspension structure, guide roller exquisite layout, streamline material resistance;4, Comprehensive, reliable safety equipment- Equipment in line with the CE certification; handling equipment, the implementation of software and hardware double protection, risk control more thoroughly.
Buyers in the US, Canada, Mexico, Colombia, Brazil and Argentina use this rotogravure printing machine configuration when they need stable output and clear project support from quotation through installation.
The HONOR 3.5 Plus line is engineered for multi-shift factory use.
Request a configuration sheet and quotation via WhatsApp or the contact form.
Technical parameters: Printing color number: 10 colors(Increase or decrease); Maximum printing width: 1250 mm; Maximum machine speed: 400 m/min(Standard plate roll diameter Φ170); Roll diameter range: Φ120mm-Φ300mm; Roll length range: 900 mm -1350mm; Alignment accuracy: ≤±0.1mm(automatic); Maximum diameter of unwinding: Φ800mm; Maximum diameter of winding: Φ800mm; Receiving and discharging paper core: Φ76mm×Φ92mm(3"); Tension range: 3-30KgF.
Share bag/product size, material and target capacity via WhatsApp or the contact form for a recommended configuration and quotation.
Key parameters
| Model | HONOR 3.5 Plus |
|---|---|
| Speed / Capacity | 400 m/min(Standard plate roll diameter Φ170) |
| Material | OPP, BOPP, CPP,PE,PET,PVC,NY etc. |
| Printing color number | 10 colors(Increase or decrease) |
| Maximum printing width | 1250 mm |
| Roll diameter range | Φ120mm-Φ300mm |
| Roll length range | 900 mm -1350mm |
| Alignment accuracy | ≤±0.1mm(automatic) |
| Maximum diameter of unwinding | Φ800mm |
| Maximum diameter of winding | Φ800mm |
| Receiving and discharging paper core | Φ76mm×Φ92mm(3") |
| Tension range | 3-30KgF |
| Tension accuracy | ≤±0.3 KgF(Full amplitude accuracy) |
| Heating mode | Electric heating/steam/natural gas/hot oil, etc |
| Heating temperature | Max.80ºC(indoor temperature 20ºC) |
| Temperature control accuracy | ±2ºC |
| Total machine power | Approx.175Kw |
| Brand | OUNUO / OYANG |
| Category | Rotogravure Printing Machine |
Share bag size, material GSM and target capacity — we will recommend a setup and quotation path.
